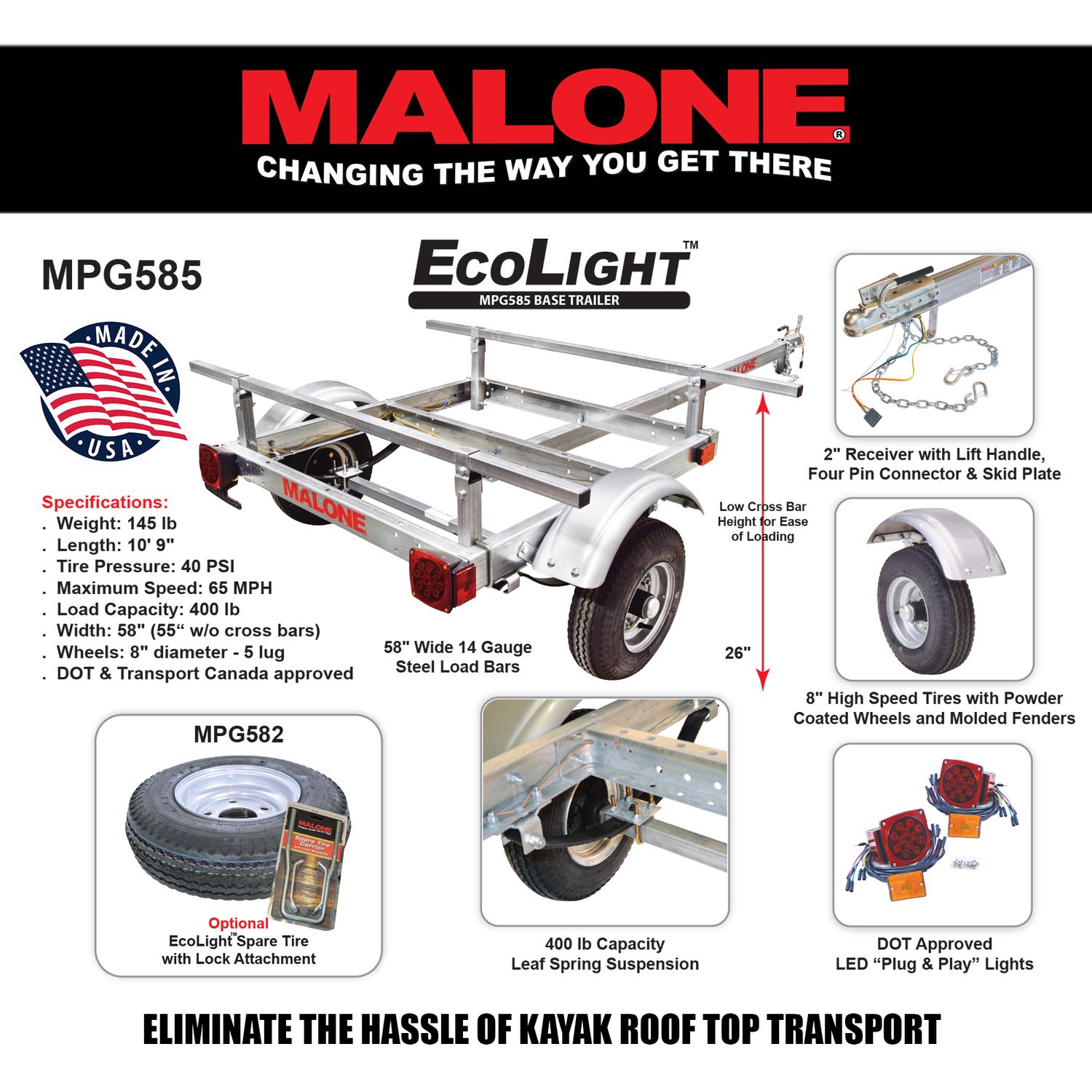

Malone Ecolight Sport Trailer

The EcoLight™ is Malone's most affordable kayak trailer. Each unit is proudly designed and built in the USA with high grade galvanized steel for years of use. These trailers have a speed rating of 65 mph while transporting loads up to 400 lbs. Features a reinforced extra-long tongue, 58" wide steel load bars, molded fenders, 8" high-speed tires, powder coated rims and a 2" receiver with lift handle.

This trailer serves as the base frame for the EcoLight™ Packages and is DOT and Transport Canada certified. All parts and workmanship are guaranteed with a Five Year Limited Warranty. Assembles in 3-5 hours with common shop tools. Detailed assembly instructions included.

Features:

• Marine grade galvanized frame
• DOT approved submersible LED lighting
• 8" - five lug high-speed powder coated wheels
• Injection molded fenders
• 58" coated steel load bars
• 2pc extended tongue
• Flat four wire harness
• Tongue skid plate
• Leaf spring suspension
• Galvanized heavy duty axle
• Five Year Limited Warranty
• Made in the USA

Specifications:

• Width: 58" (55" without cross bars)
• Frame Width Assembled (Without fenders): 40"
• Length: 10' 9"
• Weight: 145 lb. (Without accessories)
• Capacity: 400 lb. / 14' canoe or kayak
• Frame: Marine grade galvanized steel
• Required Ball Size for Vehicle Attachment: 2"
• Ball Height: 14" From Ground - To Top Of Ball
• Wheel Specifications: 8" Diameter; Rated to 65 MPH
• Tire Specifications: 4.80 / 4.00-8", Load Range B, (785 LB)
• Recommended Tire Pressure: 40 PSI, 90 PSI Max
• Tongue Weight (Unloaded): 12 lb
• Cross Bar Spread: 38.5" (Fixed)
• Height of Cross Bars from Ground: 26"

Installation:

• Please note that the trailer load bar support system has been upgraded and some product imagery does not show the change.
• Review instructions and check all parts prior to assembly. Register your warranty prior to first time use.

What’s In The Box:

• (2) Wheels & Tires
• (1) 2pc Extended Tongue
• DOT Approved Lighting & Bearings
• Pre-Tested Electrical System
• Pre-Fitted Chassis Components
• Instruction Manual & Registration Documentation

Peter's Comments:

This is a versatile small trailer. The most interesting customization I did was to add two pairs of bunks so that it held a large fishing kayak. I had one pair of bunks under the kayak to support most of the weight and the other pair of bunks ran down each side of the hull.
